Xbox One HDMI Port Repair for Xbox One

Starting at $59.00 · Same-day service · 90-day warranty · 50+ U.S. drop-off locations

Xbox One HDMI Port Repair Repair for Xbox One

Home > Xbox One/S/X HDMI Port Repair Service

We are the world leaders in replacements of HDMI ports. In particular, we excel on the Xbox One System. We work on all three models: the Xbox One Original, the One S, and the One X. You can send in the device as a whole or just the motherboard alone. We also offer bulk HDMI replacement options for 10 or more Xbox One systems.

Related Article: Xbox Series X/S HDMI Port Repair Service

To get started with an HDMI replacement, locate and click the "Start a Repair" button at the top of this page.

Troubleshooting a Bad HDMI Port

  • Ensure your system is fully powered on and that you see a white light.
  • Plug in the HDMI port; if there’s no picture, check the connection.
  • If wiggling the cable produces changes on the TV screen, a new HDMI port is required.
  • If there is no change when wiggling and the port appears fine, you might need a motherboard repair.
  • Listen for any strange noises like clicks from an HDD (do not confuse these with fan noises); if present, an HDD replacement service may be needed.
  • If any step fails, please fill out a repair ticket indicating which step your HDMI port failed at, so we can help you further.

How We Replace an HDMI Port on an Xbox One

Our repair process involves several precise steps:

  1. Apply flux to the port area.
  2. Heat up the board to 225°C.
  3. Add low-melt solder to all pins and legs.
  4. Easily remove the faulty port.
  5. Clean the area with a high-grade solvent.
  6. Remove extra solder from the legs.
  7. Heat and remove the replacement port at 250°C.
  8. While hot, align it with the HDMI IN pins.
  9. Solder all the pins in place.
  10. Add extra heat to the legs to ensure a strong joint through the motherboard hole.

Although these steps are level 9/10 in difficulty for an experienced professional, don’t worry – we’re here to help. Check out the video below to see how we perform the repair.

Additional Information

Table of Contents:

  • Xbox HDMI Repair Blog
  • Xbox 1s HDMI Port Replacement
  • Xbox HDMI Port Replacement Quality is 100% #1 in the world – We perform automatic repairs on these systems.

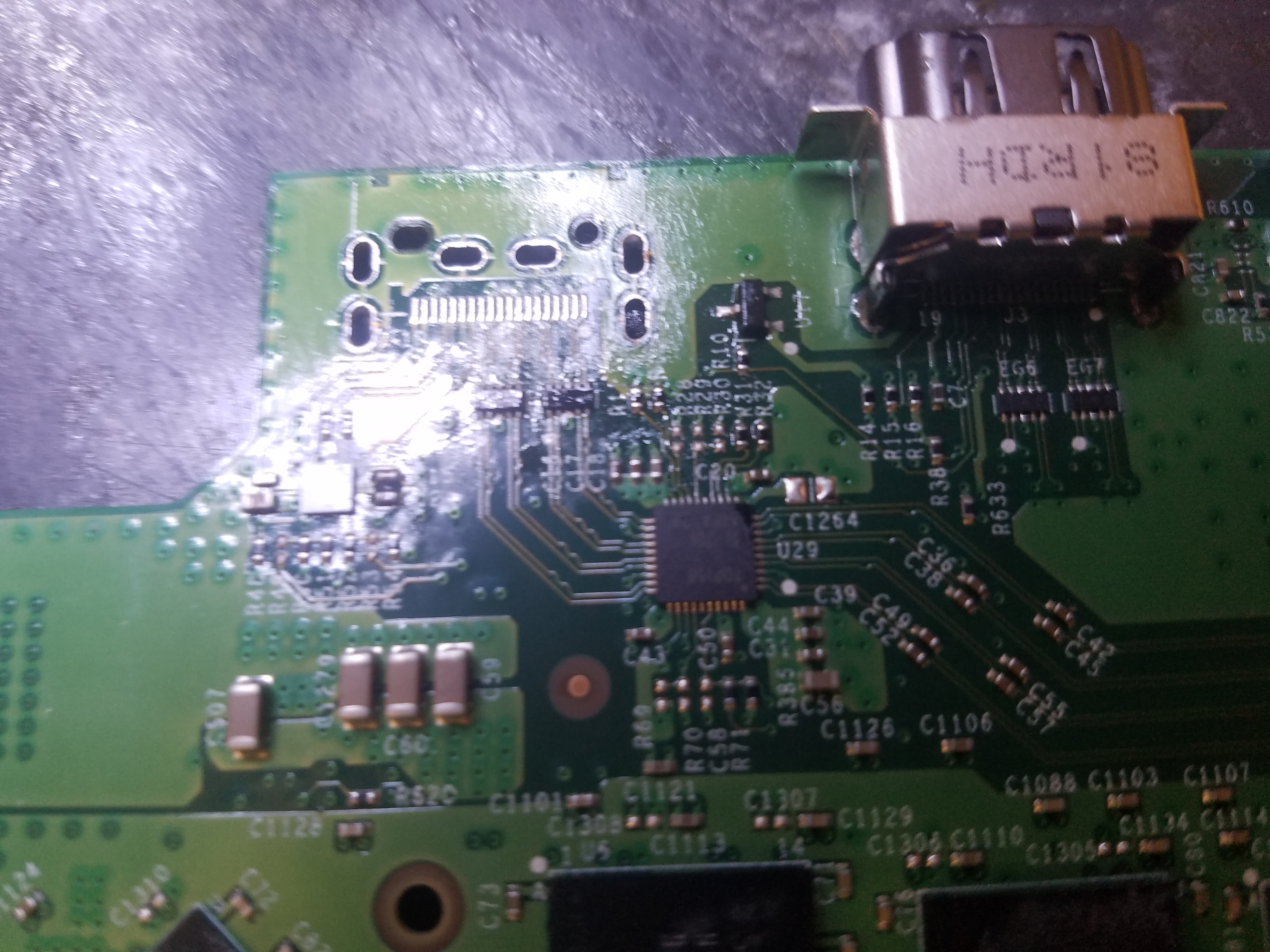

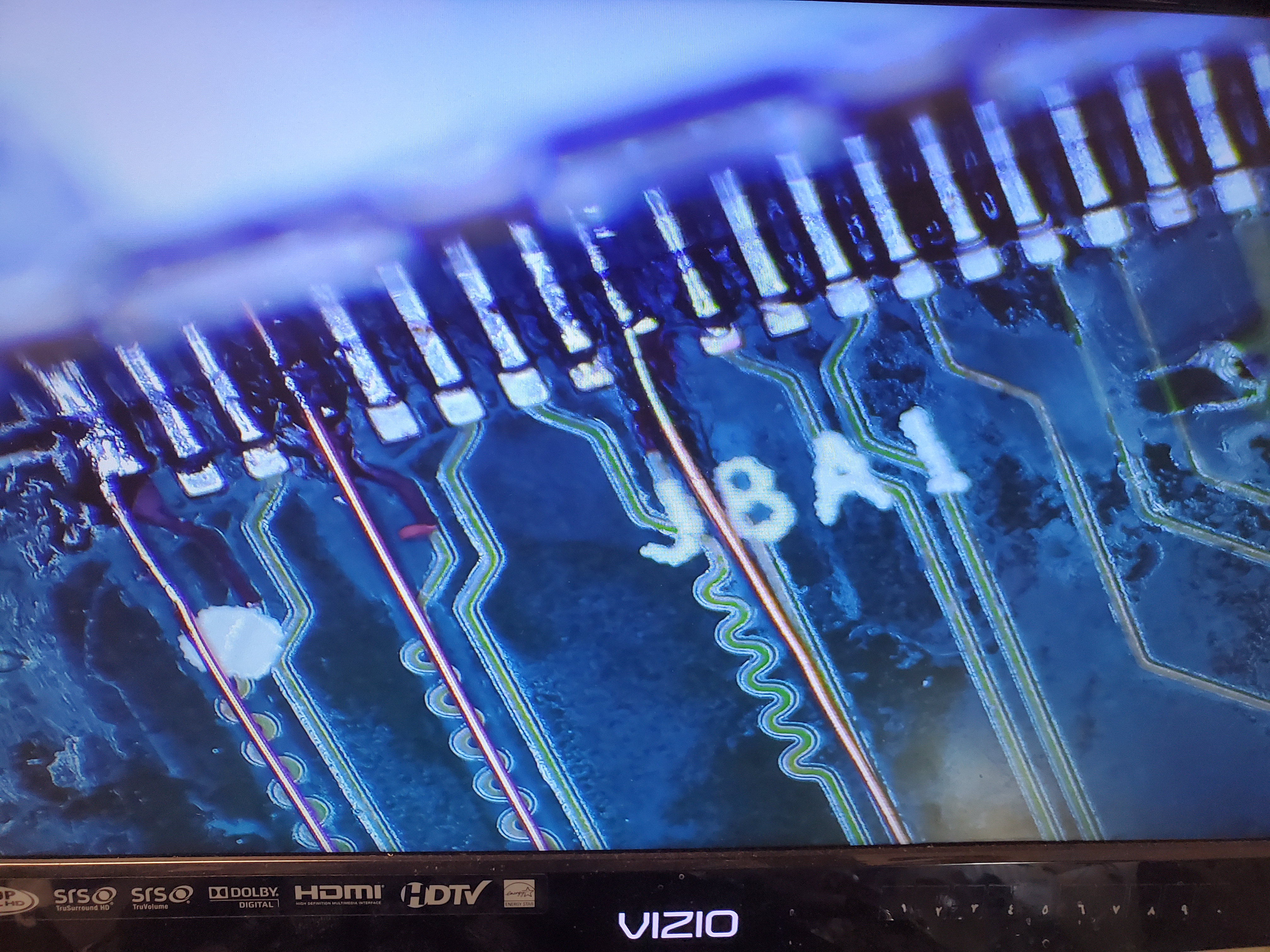

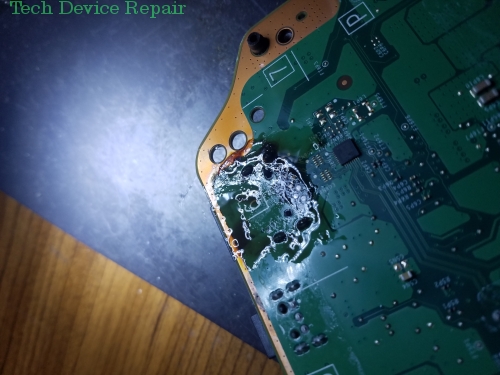

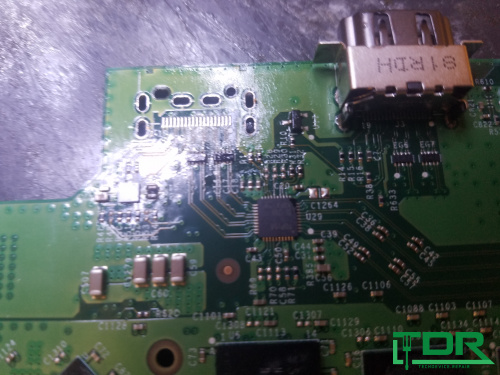

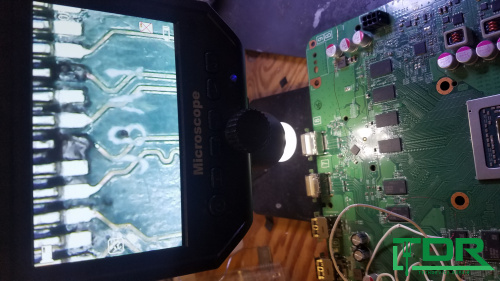

Xbox 1 HDMI Repair – Motherboard Damage: We have repaired HDMI ports on damaged motherboards where there were ripped connection pads, soldering them to the appropriate signal. Our HDMI port replacements can be done manually or semi-automatically.

User Comments

David Macmorine

January 4, 2024 at 11:50 pm

"Hey – no HDMI output from my son's Xbox X… HDMI or motherboard repair, I would guess… what’s a quote? Peace."

TDR Webmaster

January 5, 2024 at 2:11 am

"We provide the most competitive prices and best HDMI port replacement quality. Please get a quote on the start a repair page."

A1 LOTTERY

March 25, 2025 at 1:19 am

"Great post! I never realized how simple the HDMI port replacement could be. It’s reassuring to know there’s a reliable service for Xbox One repairs. I’ll definitely keep this in mind for the future!"

Repair Price:

$59.00

Issue Photo Gallery

Videos Related to Xbox One HDMI Port Repair Repair

This is a standard procedure here at TDR for the replacement of an HDMI port on the Xbox one xFor more information on this repair or to get your conso...
Standard Xbox One X HDMI port replacement - YouTube
10K+ Views

Standard Xbox One X HDMI port replacement - YouTube

Duration: 00:00:58

54,650
Yes, the 158 is the "upgraded" chip it is found on the Xbox one X motherboard ... the one S uses the 159...0:00: Intro0:13: Let's test0:26: Removing t...

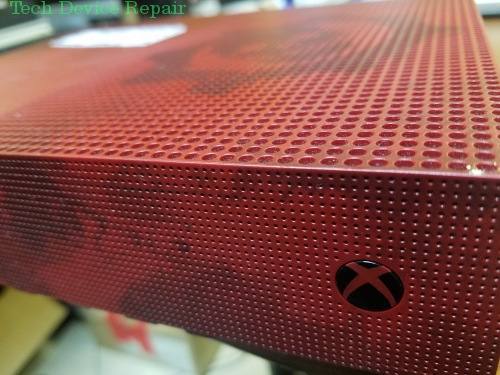

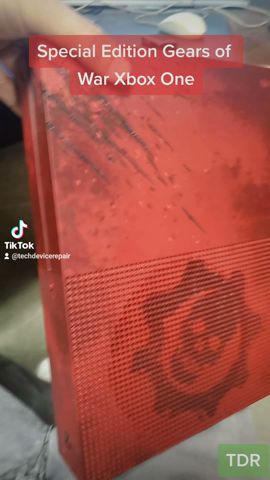

This limited edition gears of war Xbox is getting an HDMI upgrade. #shorts - YouTube
10K+ Views

This limited edition gears of war Xbox is getting an HDMI upgrade. #shorts - YouTube

Duration: 00:01:00

47,425
Who uses the HDMI IN port? I would like to know what you guys have to say! Leave it in the comments! #xboxREPAIRfor more info on xbox one HDMI port r...
How to Port Swap the HDMI on an Xbox System...#shorts - YouTube
10K+ Views

How to Port Swap the HDMI on an Xbox System...#shorts - YouTube

Duration: 00:00:57

10,014
This is a smart customer. he tries to do his own HDMI port and realizes he could damage it. He stops and contacts us immediately...and look at that HD...
Before doing any damage, he sends it to the experts.. smart man! xbox repaired! - YouTube

Before doing any damage, he sends it to the experts.. smart man! xbox repaired! - YouTube

Duration: 00:00:47

2,943

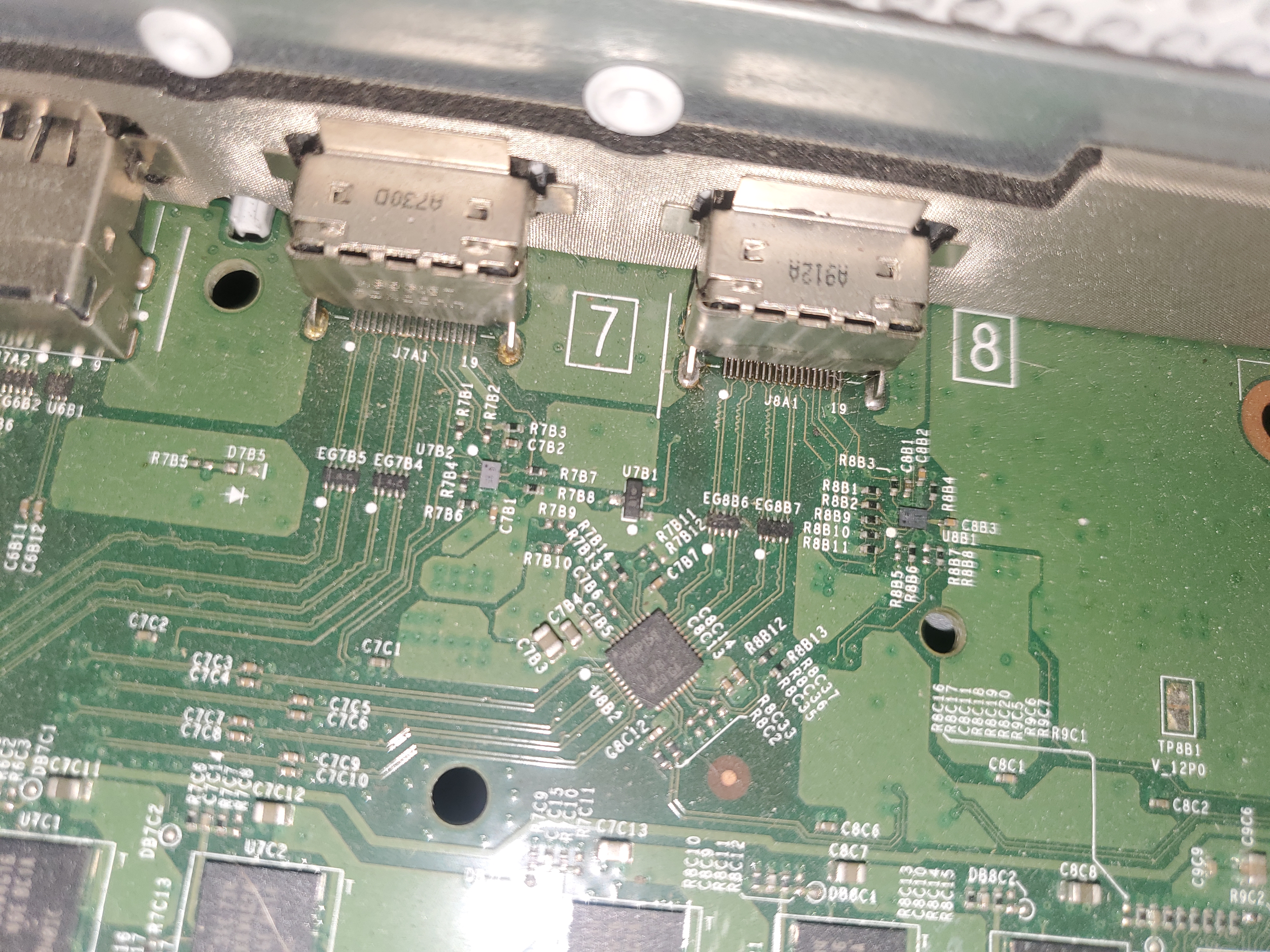

We can also use the In port to swap to your Out port. Perfect removals and installations every time! It saves you a few bucks and guarantees 100% orig...
