Pioneer Receiver Repairs

VSX-92TXH

At our state-of-the-art repair center, we expertly handle delicate HDMI port issues for premium devices like the Pioneer Elite VSX-92TXH receiver. Recently, a customer brought in a unit where the HDMI input ports had mysteriously ceased functioning after the removal of the HDMI port board (AWX8871). Although the output port continued to operate, all three input ports had failed, leaving the receiver with diminished functionality.

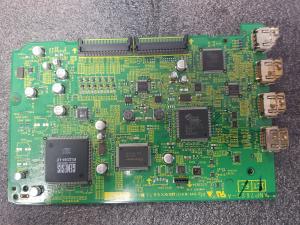

Upon thorough inspection, our skilled technicians noted that while the board appeared to show some damage, it still retained the design integrity expected from its factory construction.

Detailed Teardown of the Motherboard

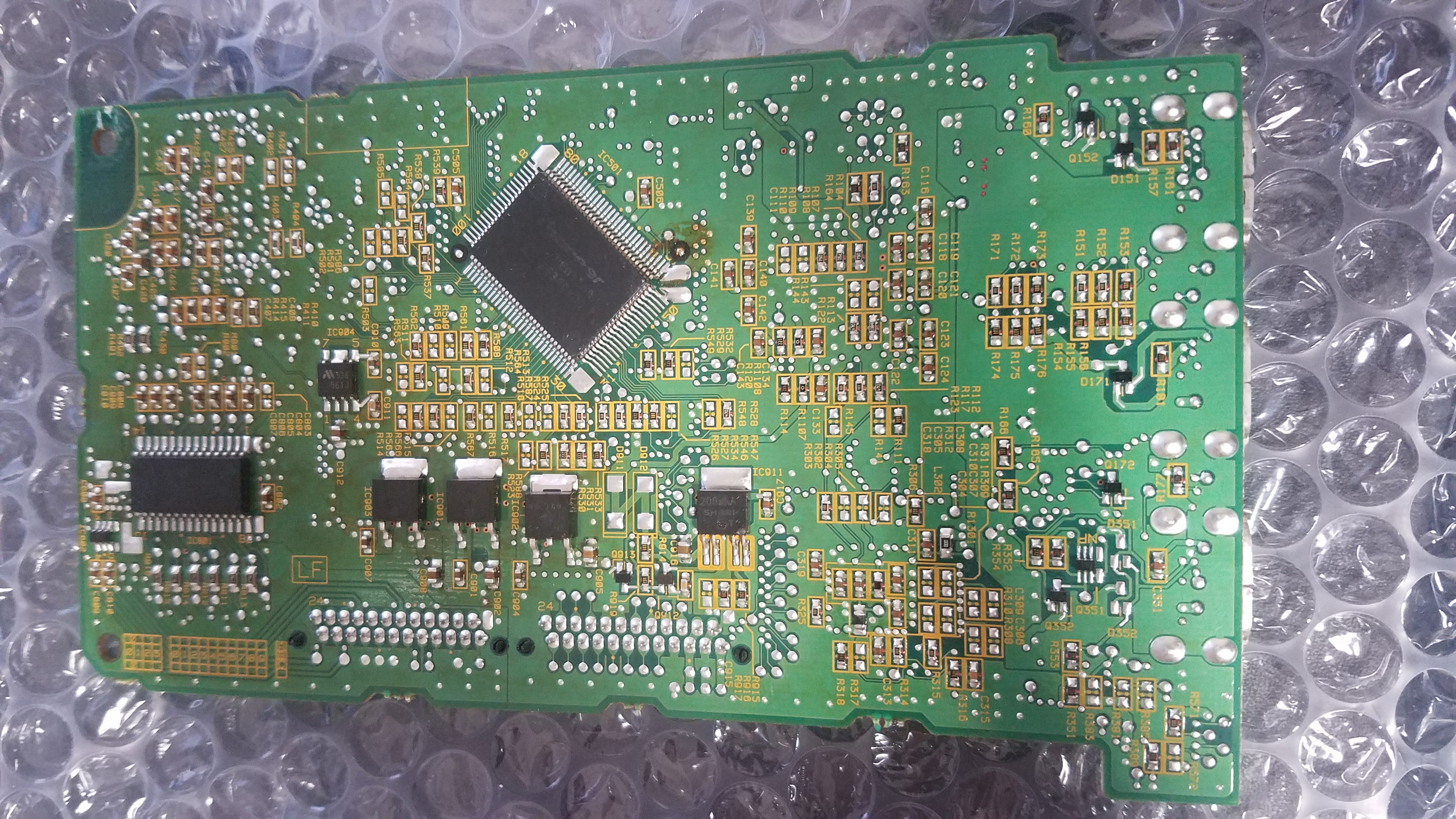

Our meticulous teardown of the receiver’s motherboard revealed the intricate layout of its components. This disassembly allowed us to carefully assess every detail, ensuring no underlying issues were overlooked.

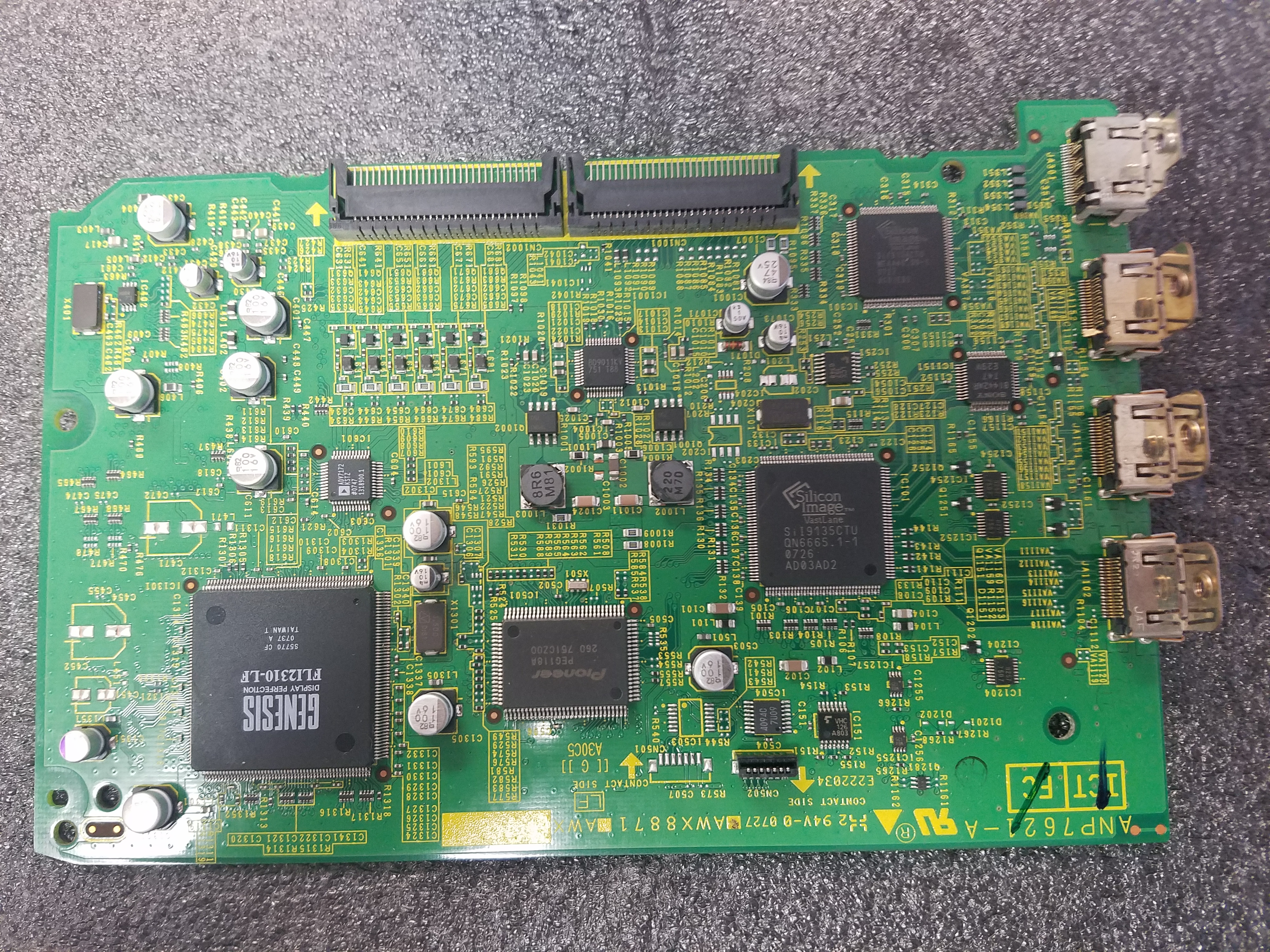

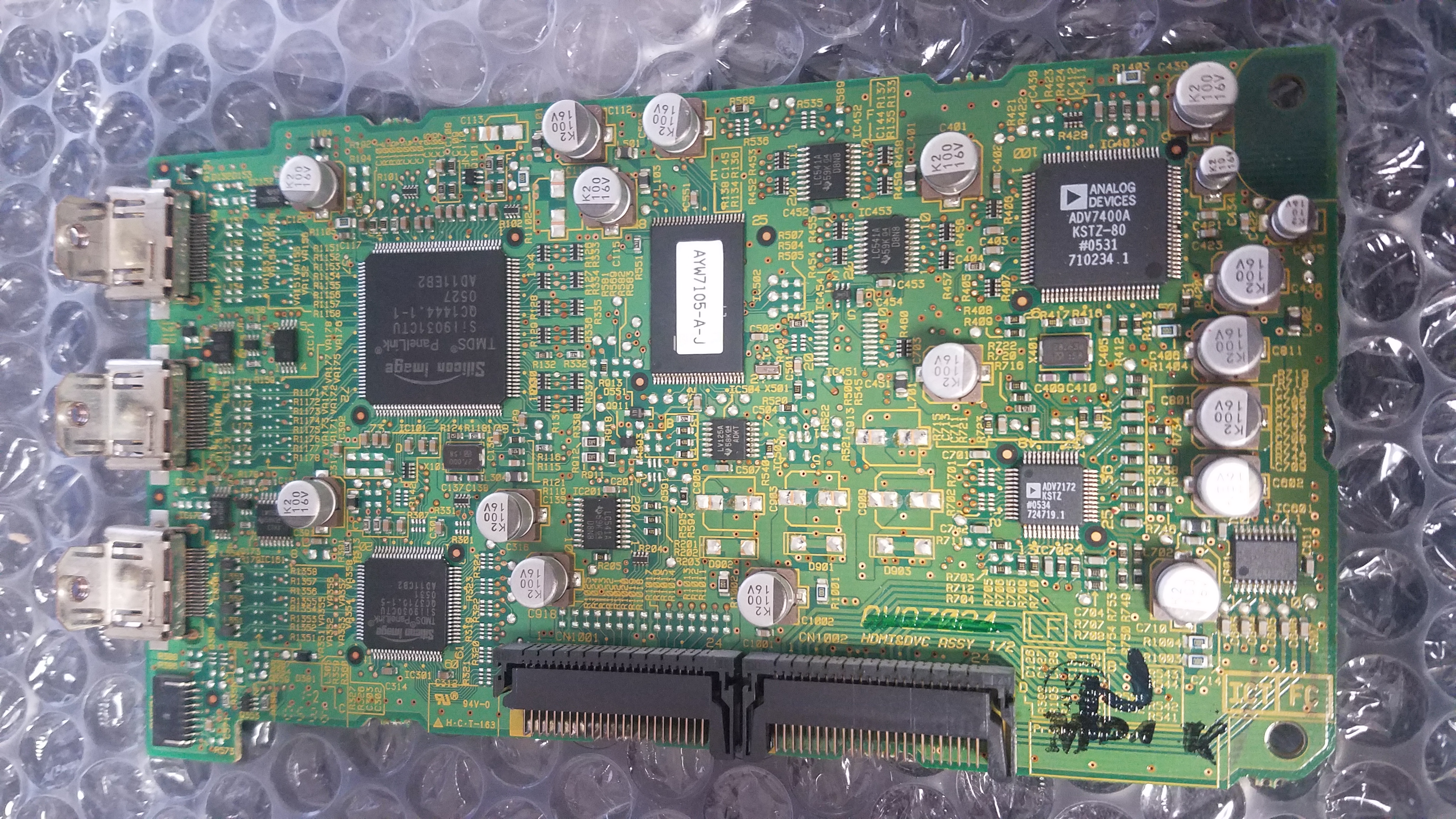

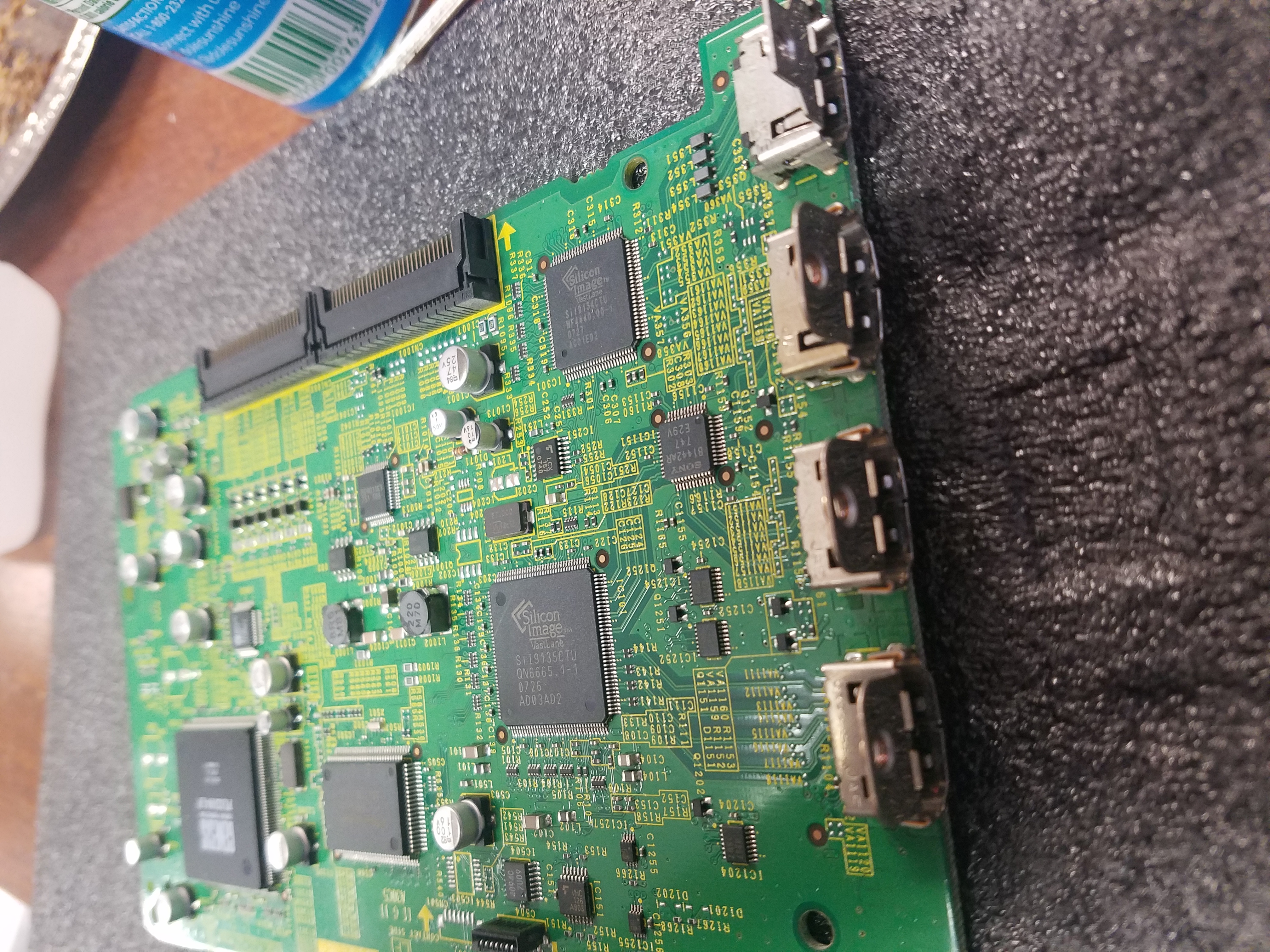

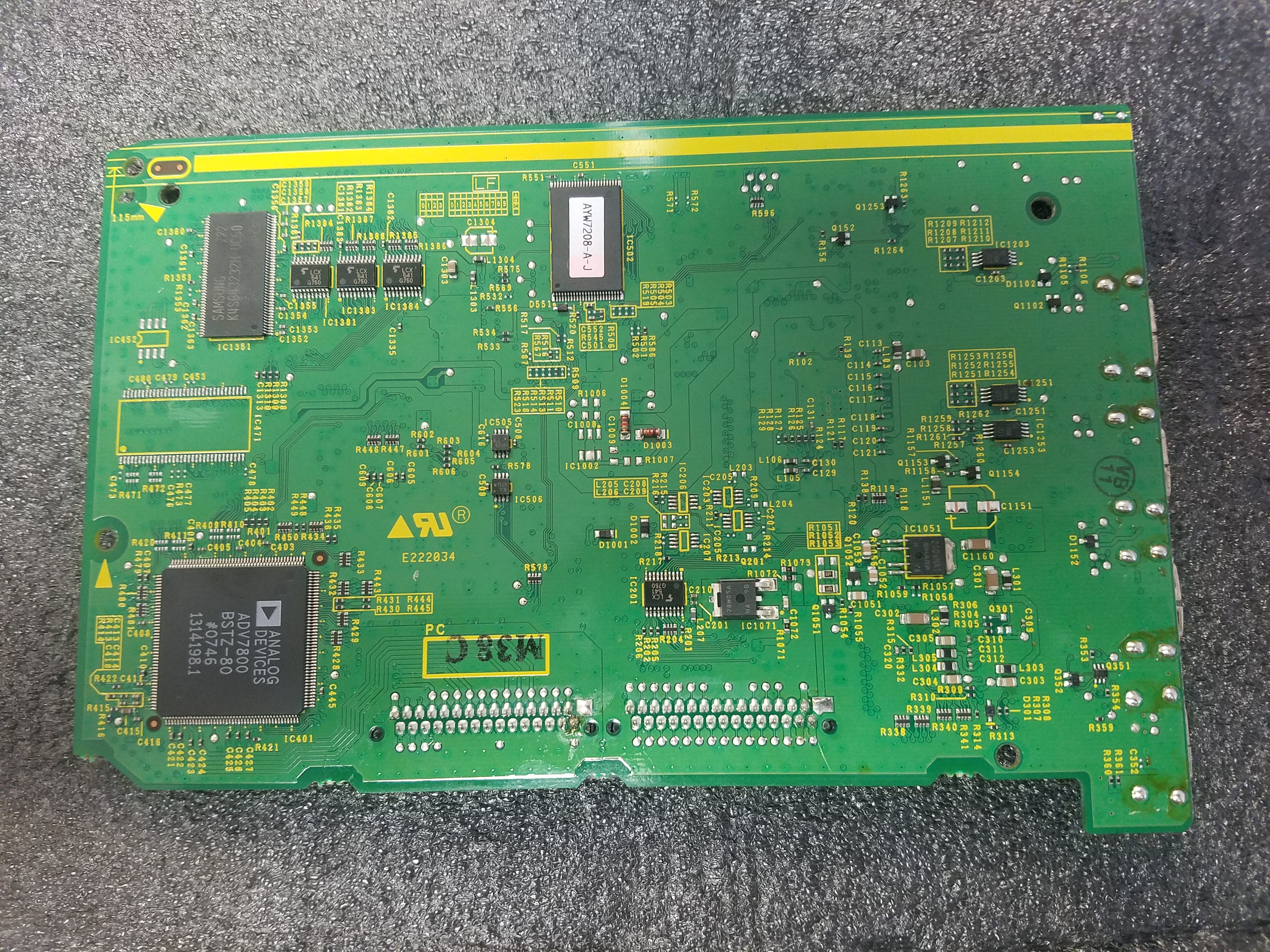

An in-depth look at the motherboard structure inside the Pioneer Elite VSX-92TXH receiver.

Replacement and Preparation Process

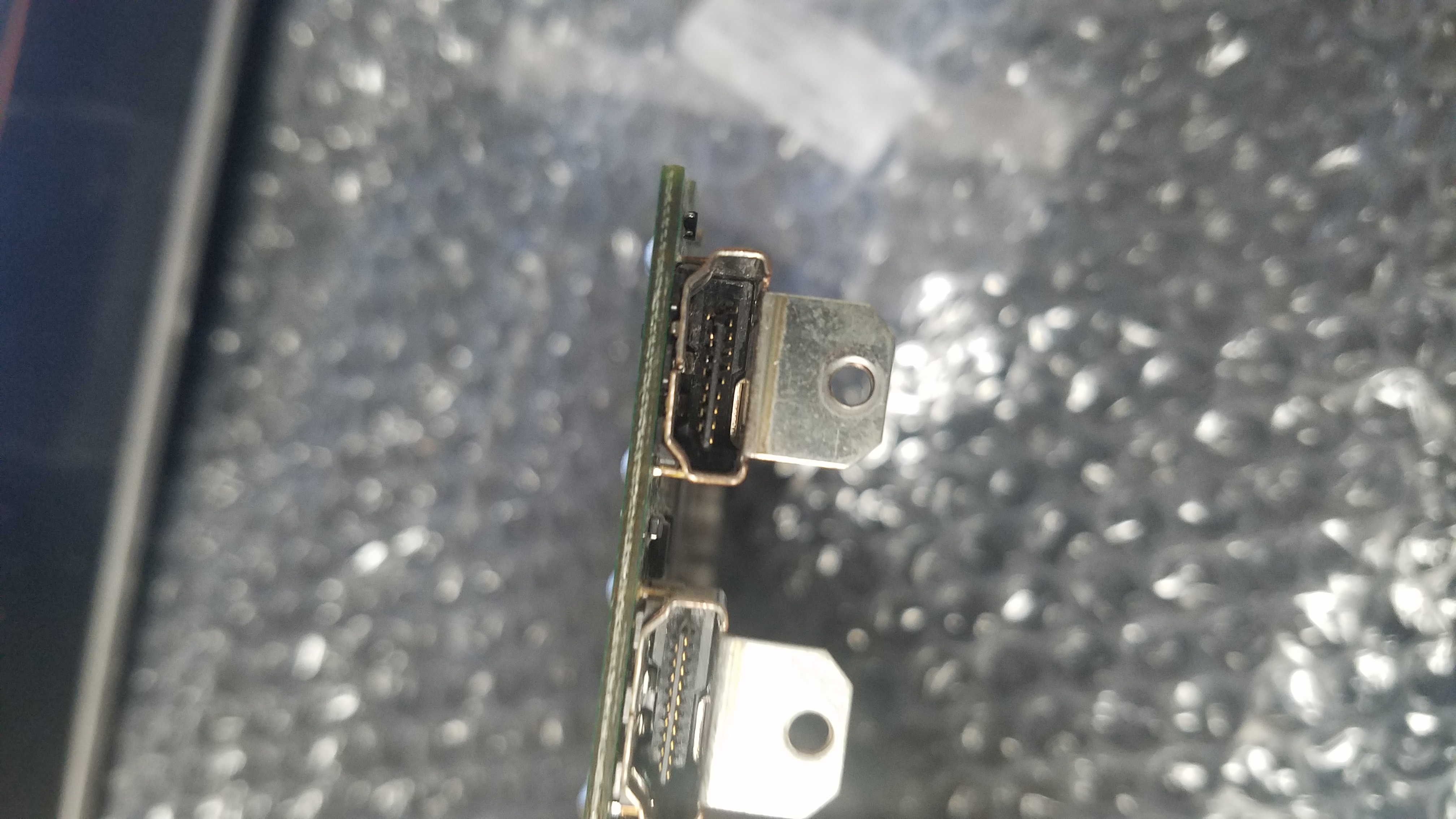

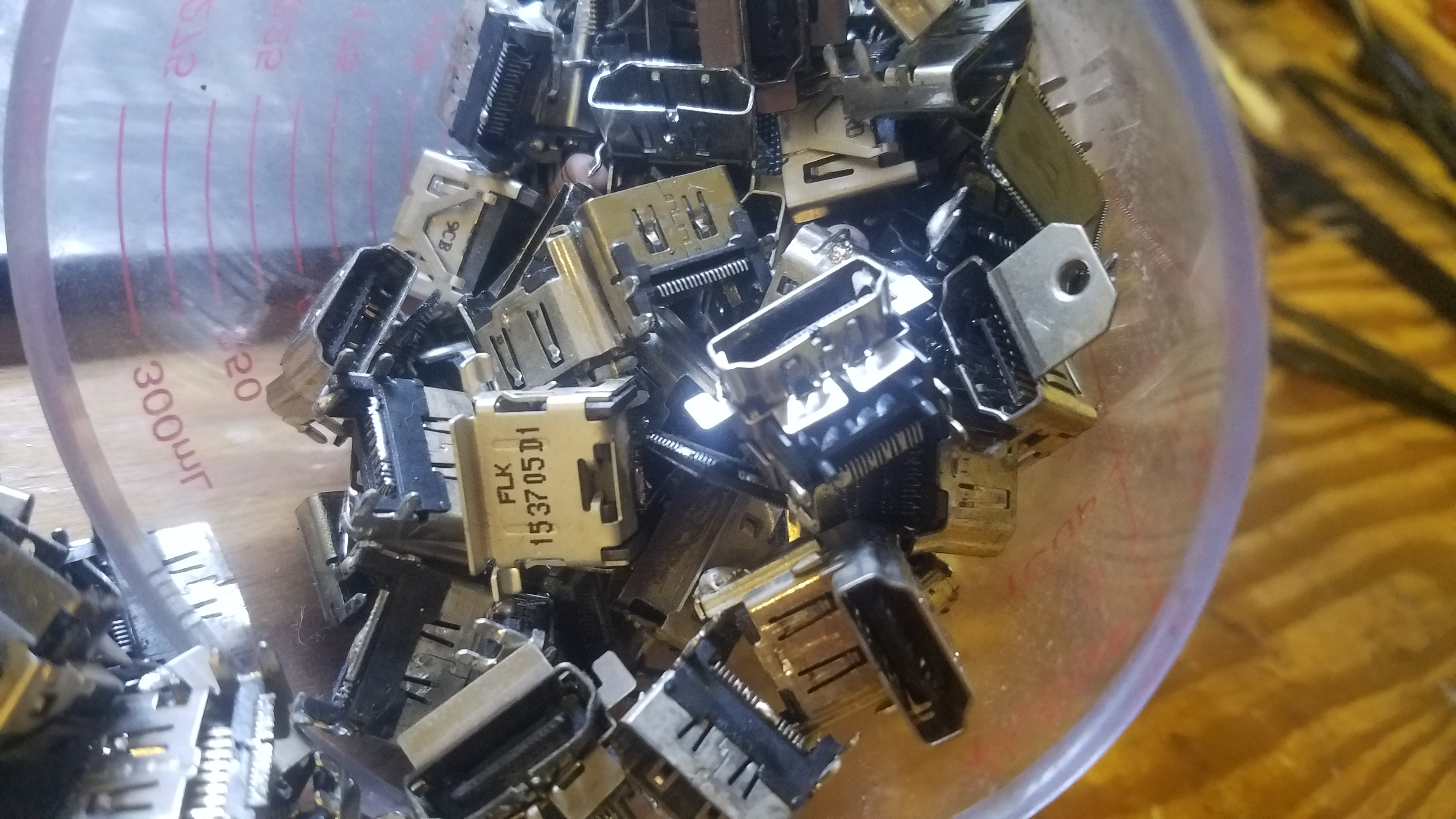

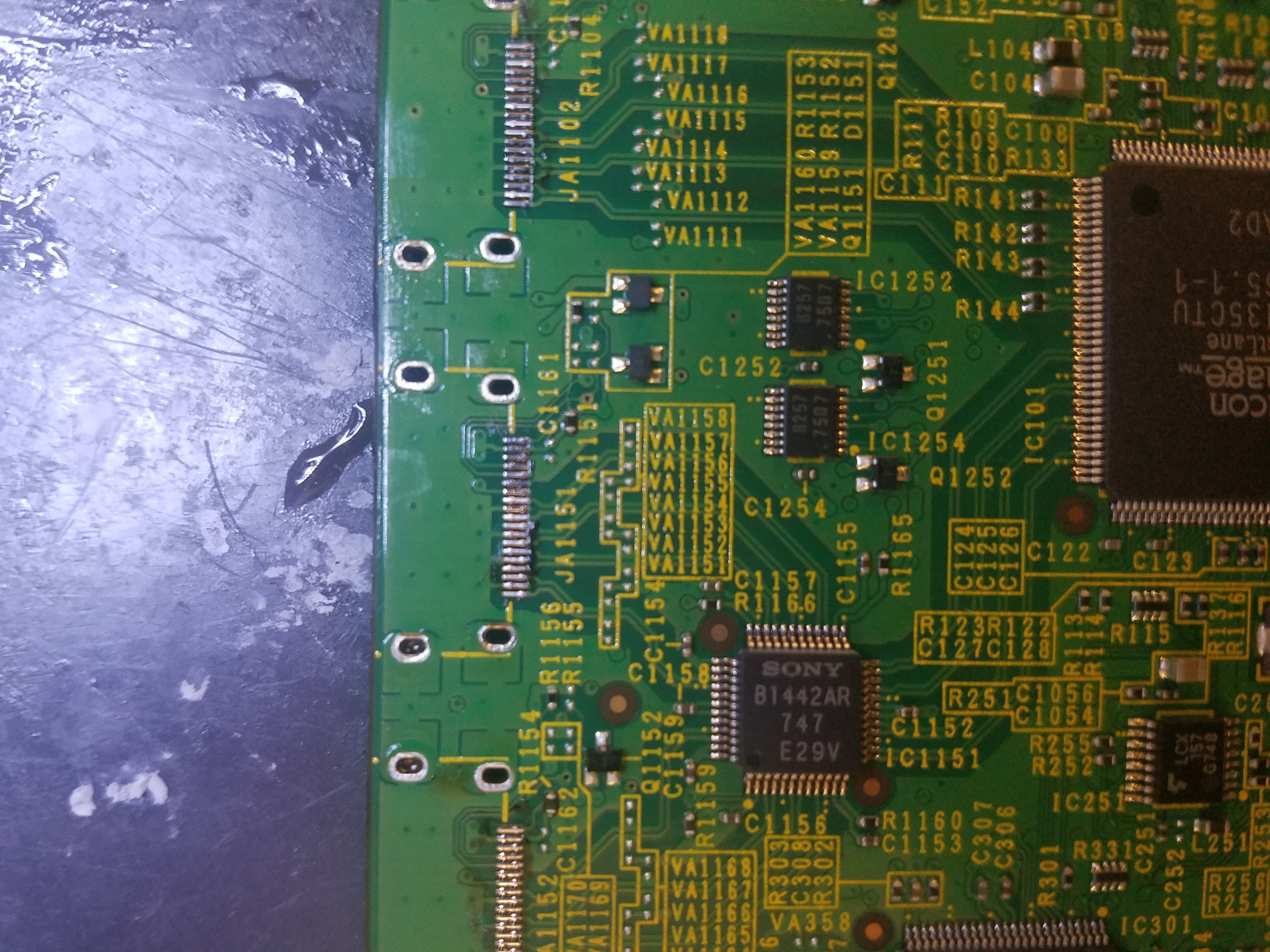

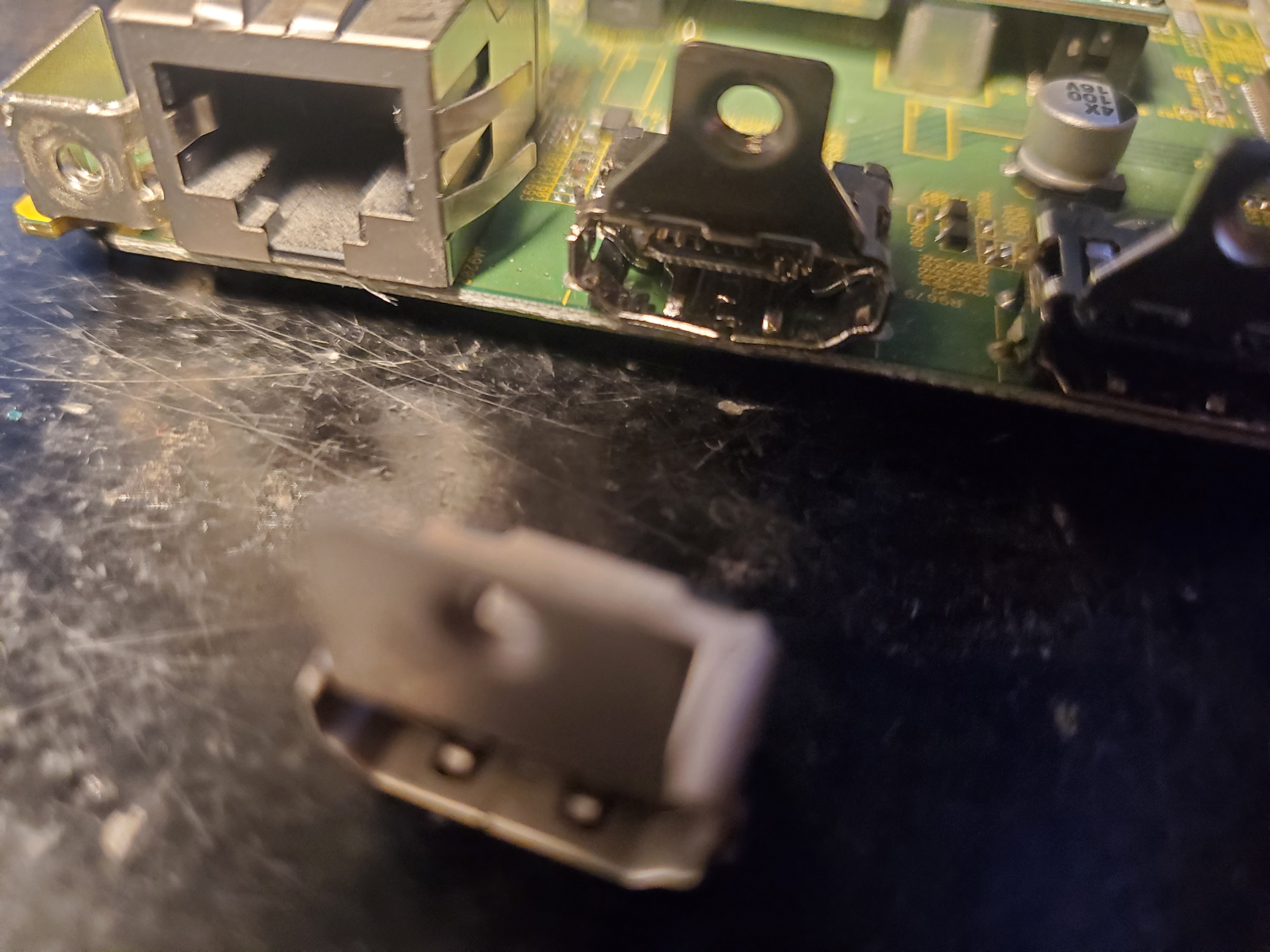

After identifying the faulty HDMI ports, we acquired premium replacement parts and began the removal process. The old ports were carefully extracted, and the surrounding area was meticulously cleaned to ensure an ideal surface for installation. This crucial step prepares the board for the precision work ahead.

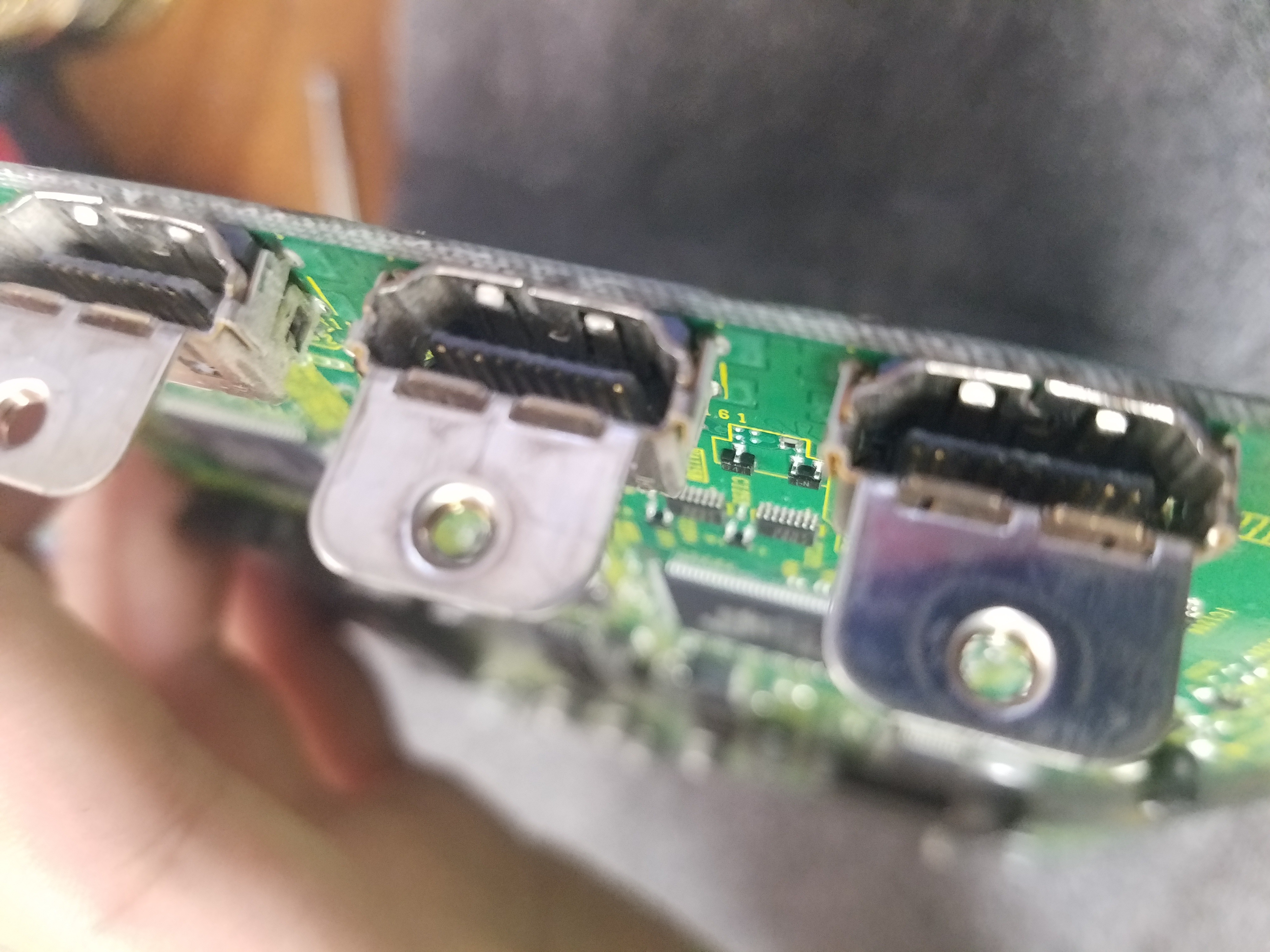

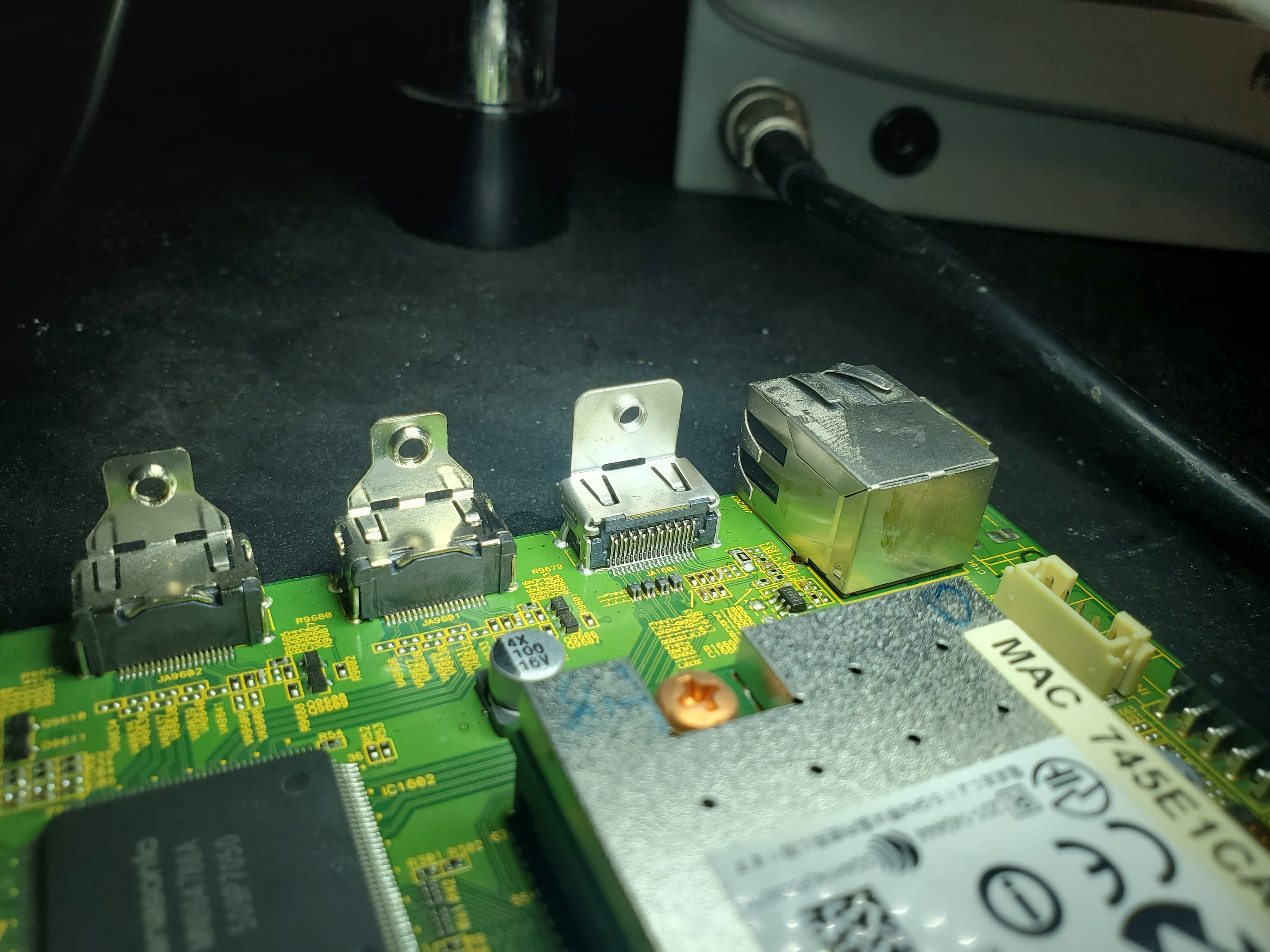

Careful removal and cleaning set the stage for a flawless new installation.

Our technicians pride themselves on the attention to detail that goes into preparing every board for the micro-soldering process.

Expert Micro-Soldering

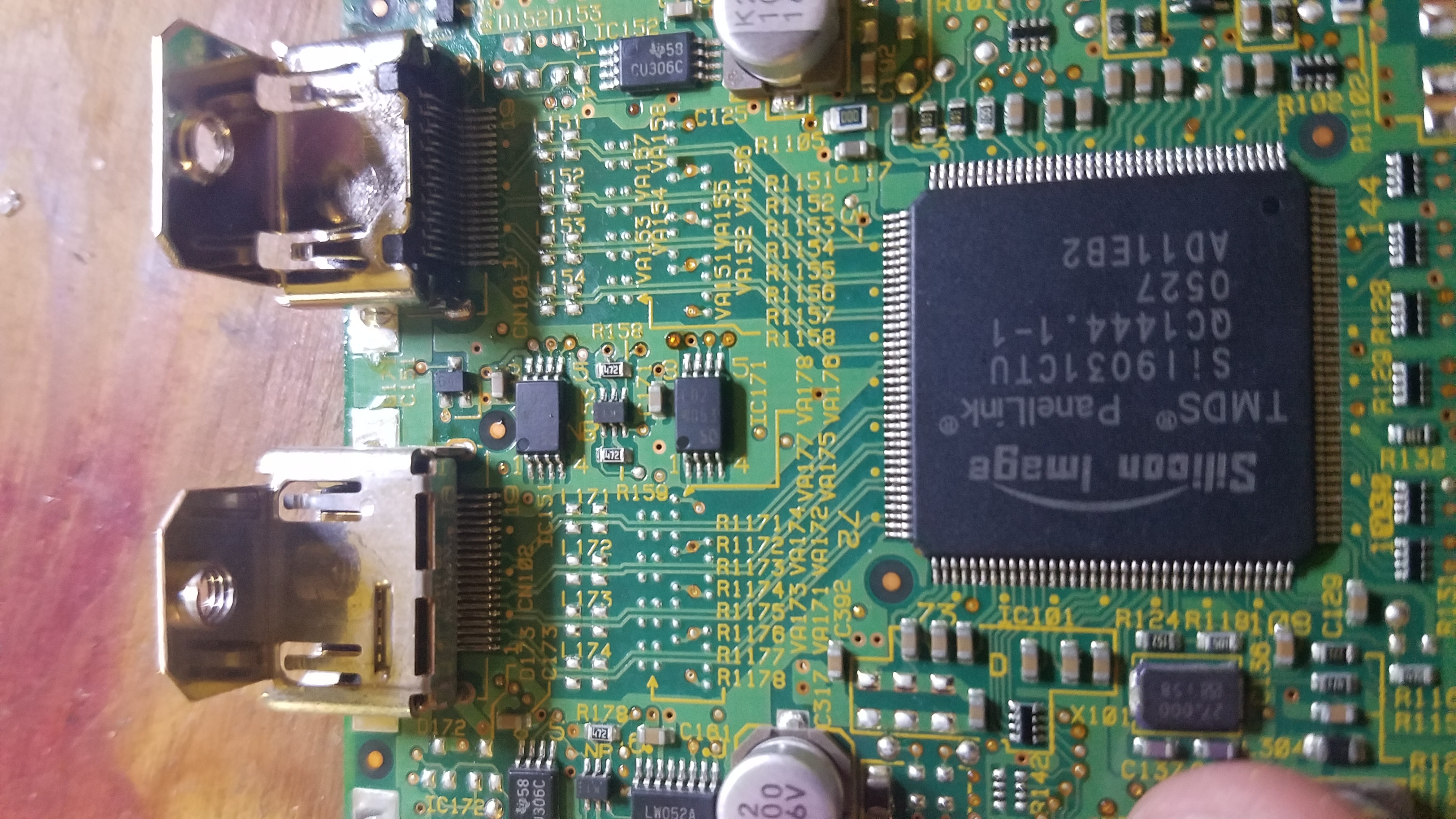

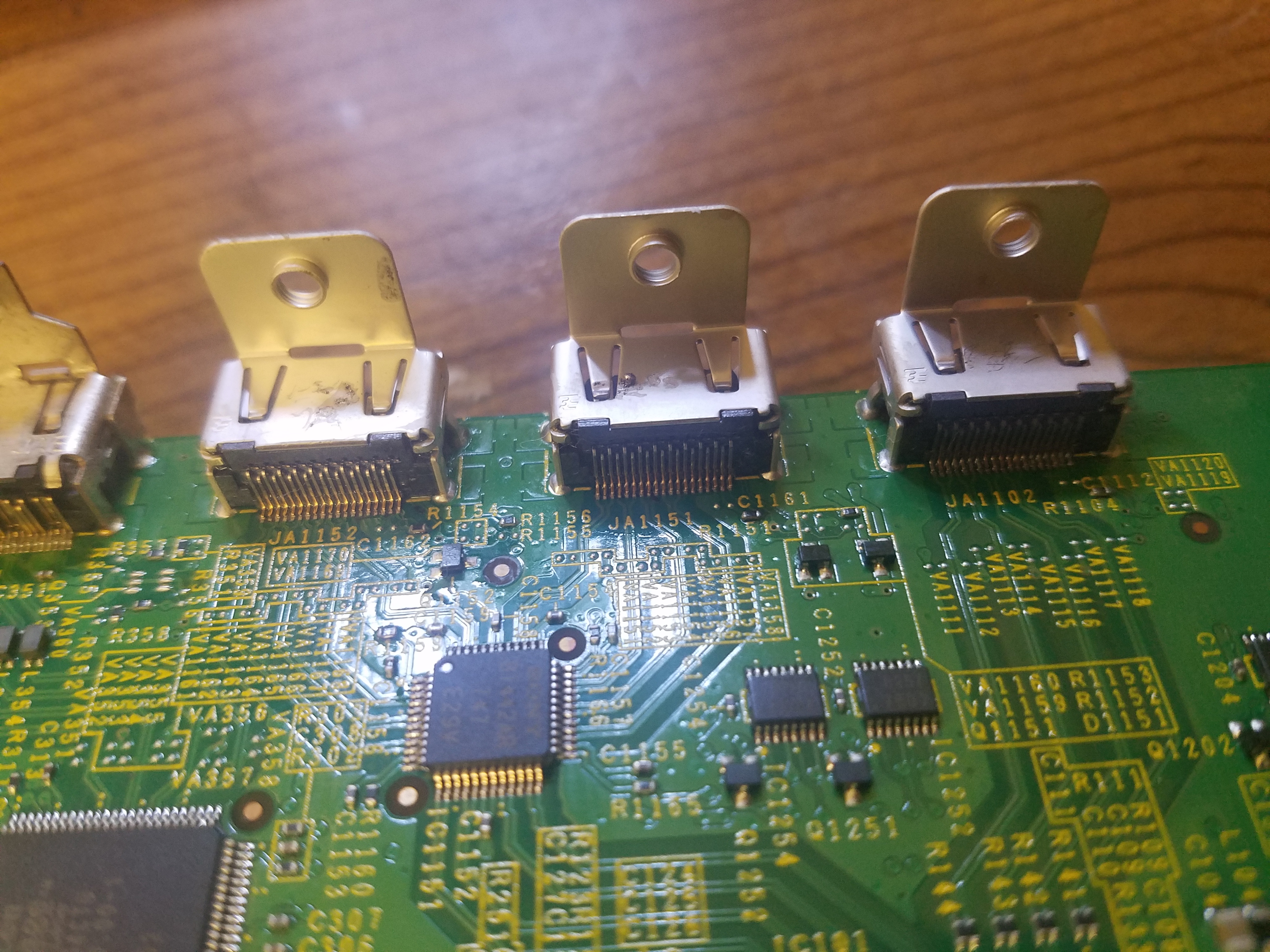

With the board prepared and the new HDMI ports verified for perfect fitment, our experienced team begins the intricate micro-soldering process. Every pin is carefully soldered with precision, ensuring that each connection is robust and reliable. The process also involves expertly attaching the legs through the designated holes—a critical step to guarantee long-term performance.

Final Quality Inspection

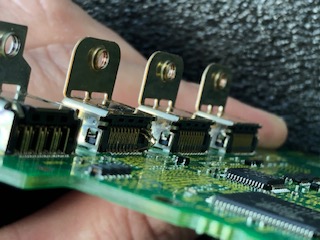

Once the micro-soldering is complete, our technicians perform a detailed micro-scoping inspection on every port. This final quality check ensures that the repair meets our rigorous standards and that the HDMI ports will perform flawlessly for years to come.
